1970 · Solvil et Titus
1970 Titus Tuning Fork F300Hz
9306
- Diameter
- 43 mm
- Movement
- Quartz
- Calibre
- ETA-ESA 9162
- Water res.
- Waterproof up to 30 M / 100 feet

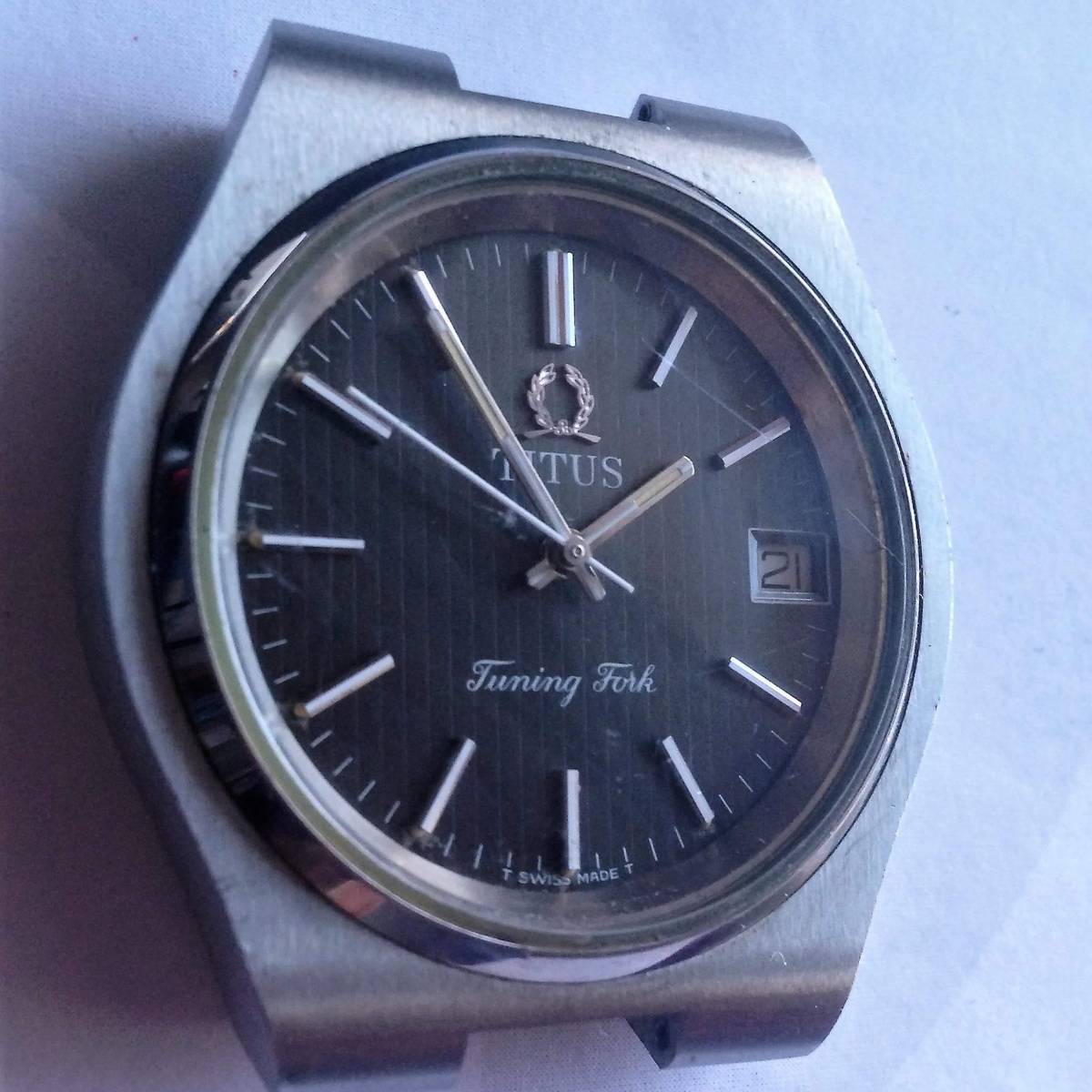

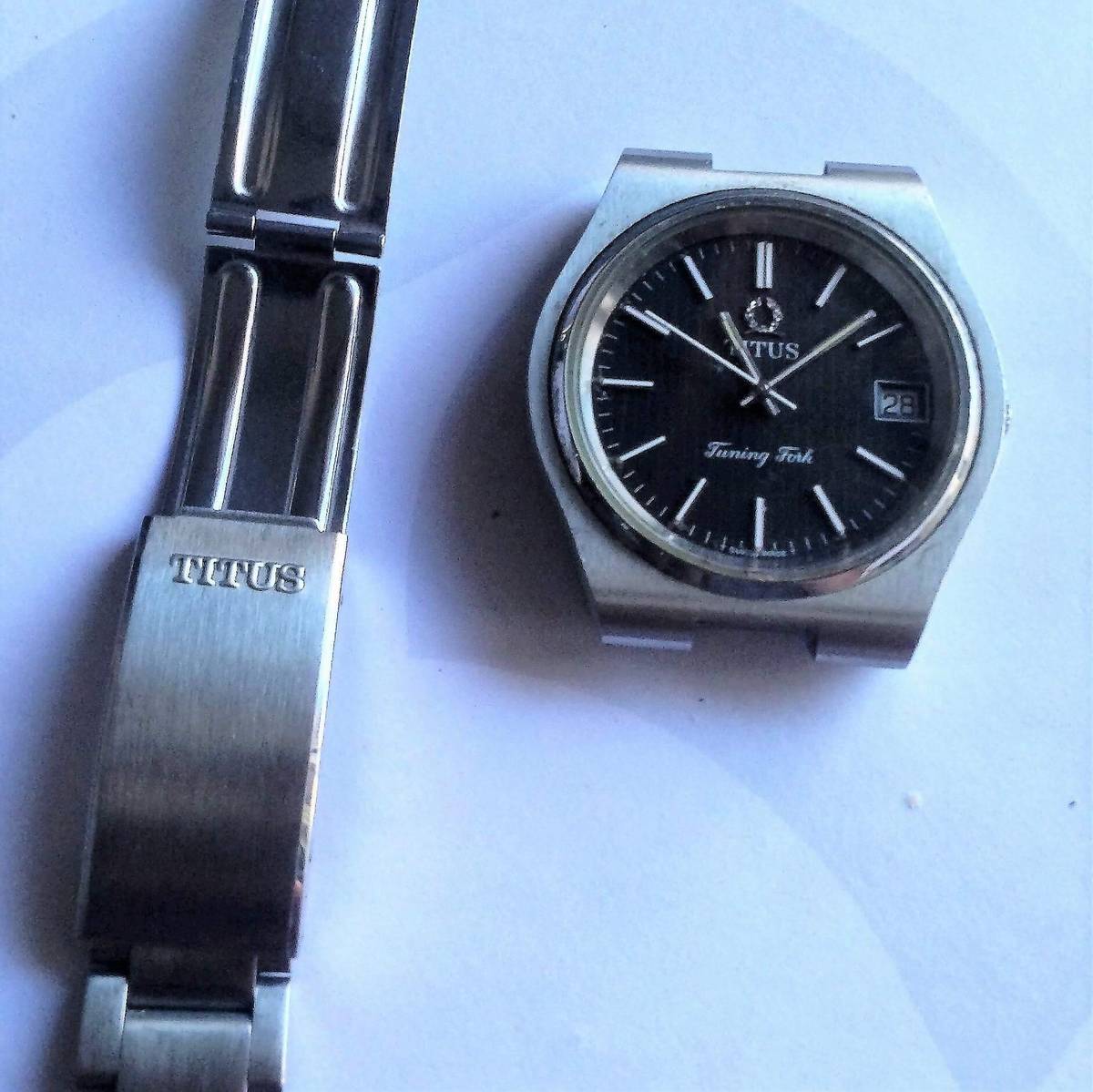

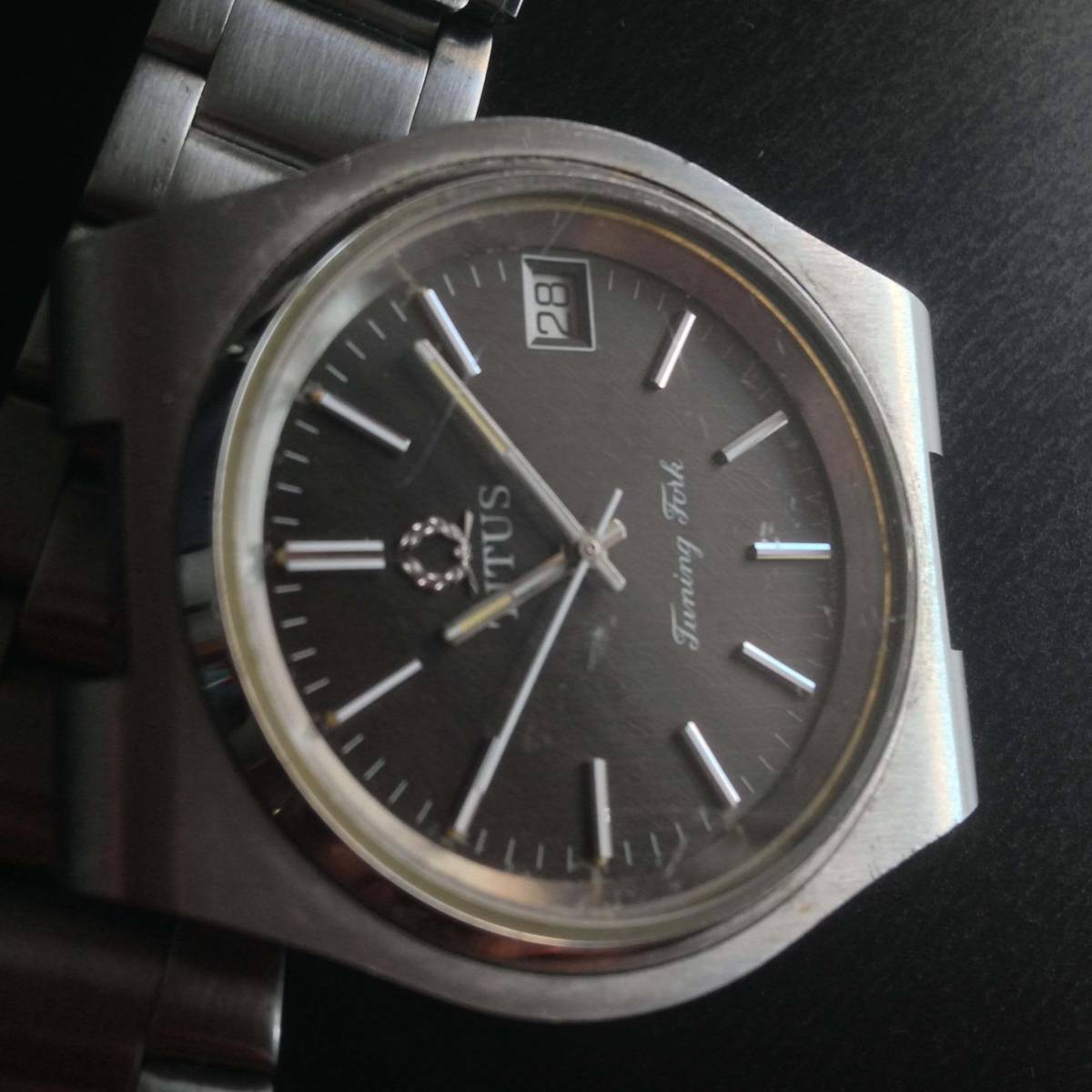

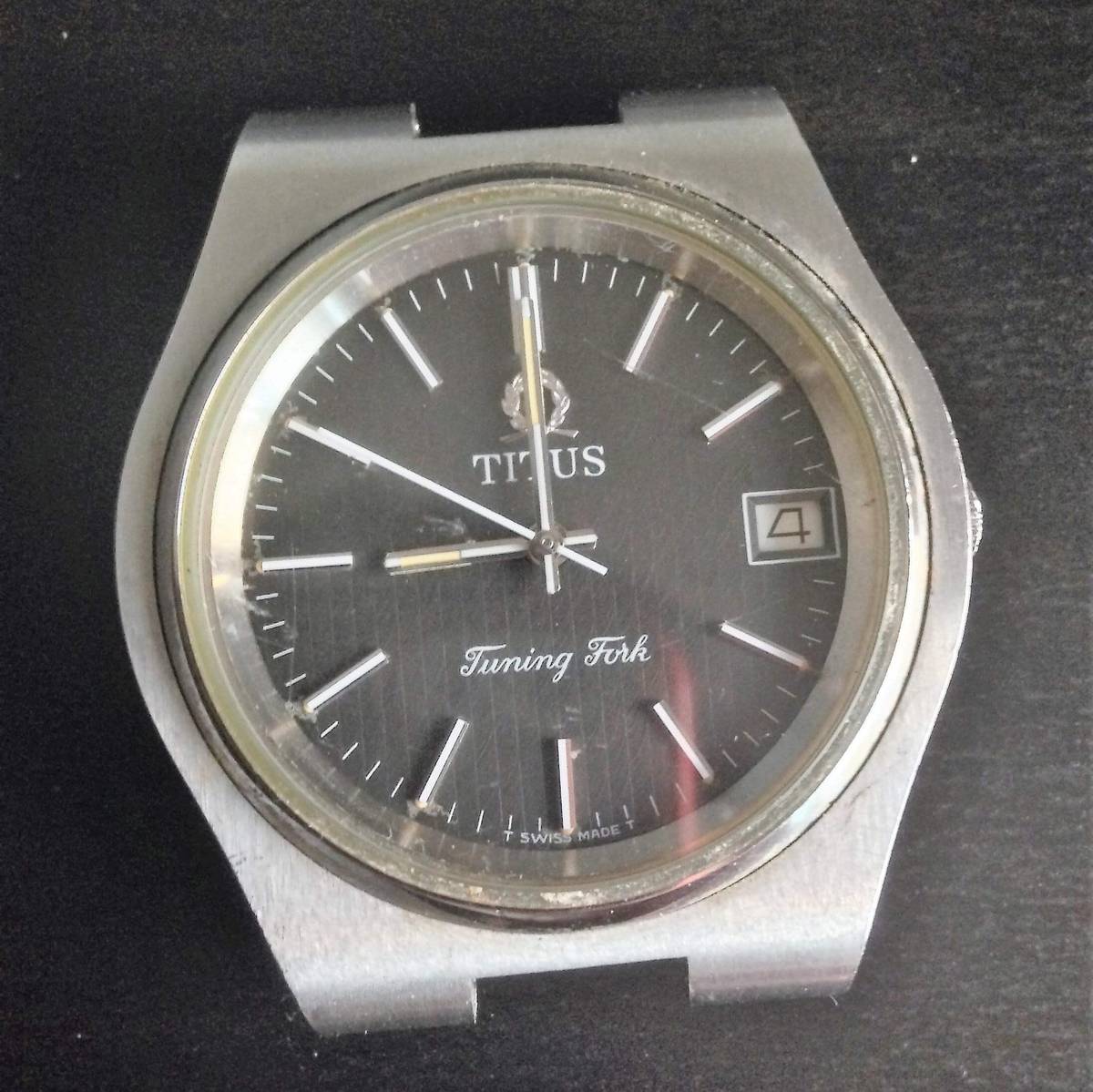

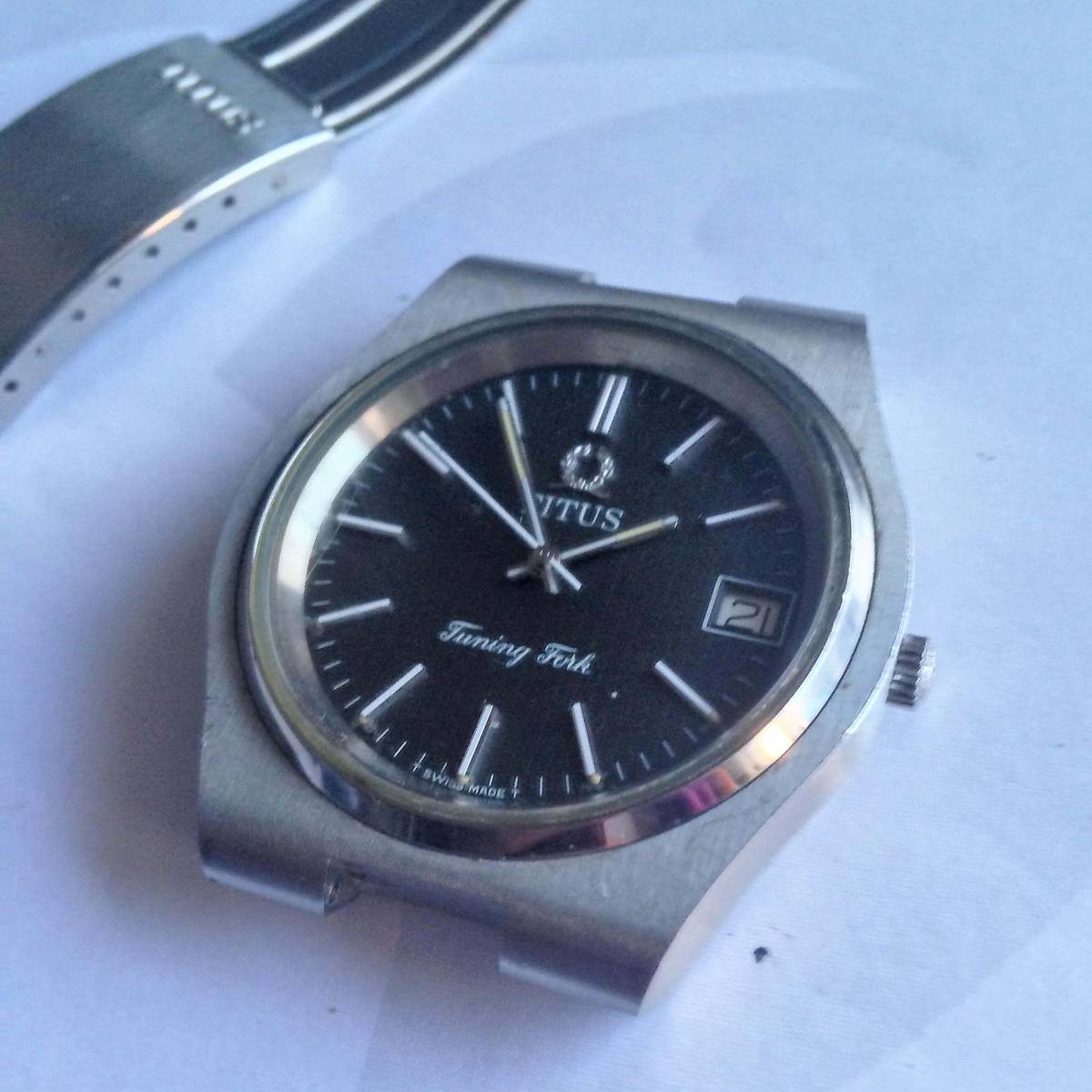

Photographs
14Shown in the order they were catalogued.
Features
Features
Date
A feature that displays the current day of the month, typically in a small window on the dial, commonly placed at the 3 o'clock or 6 o'clock position.
30 meters
Water-resistant to 30 meters, making it suitable for accidental splashes and brief exposure to water, such as wearing the watch in the shower with caution.
Model
- Brand
- Solvil et Titus
- Series
- Tuning Fork
- Catalogue Reference
- 9306
- Movement Type
- Quartz
- Production Year
- 1970
- Style
- Casual Watch
Case
- Diameter
- 43 mm
- Thickness
- 12 mm
- Material
- Stainless Steel
- Water Resistance
- Waterproof up to 30 M / 100 feet
- Finishing Details
- Vertical Brushed
- Bezel
- Polished Bezel
- Crown Type
- Push/Pull
- Crystal
- Mineral

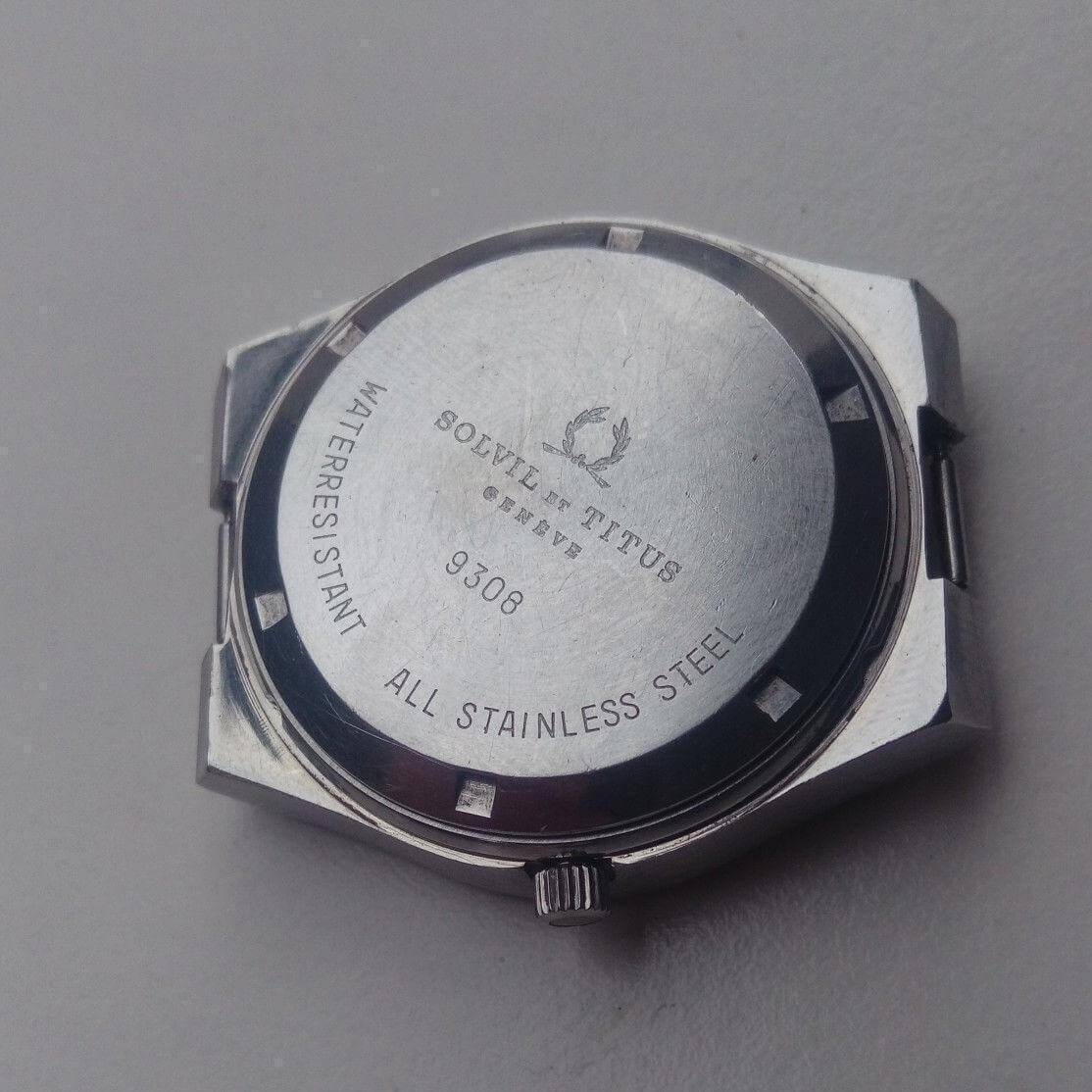

- Caseback
- Brand decoration and details engraved

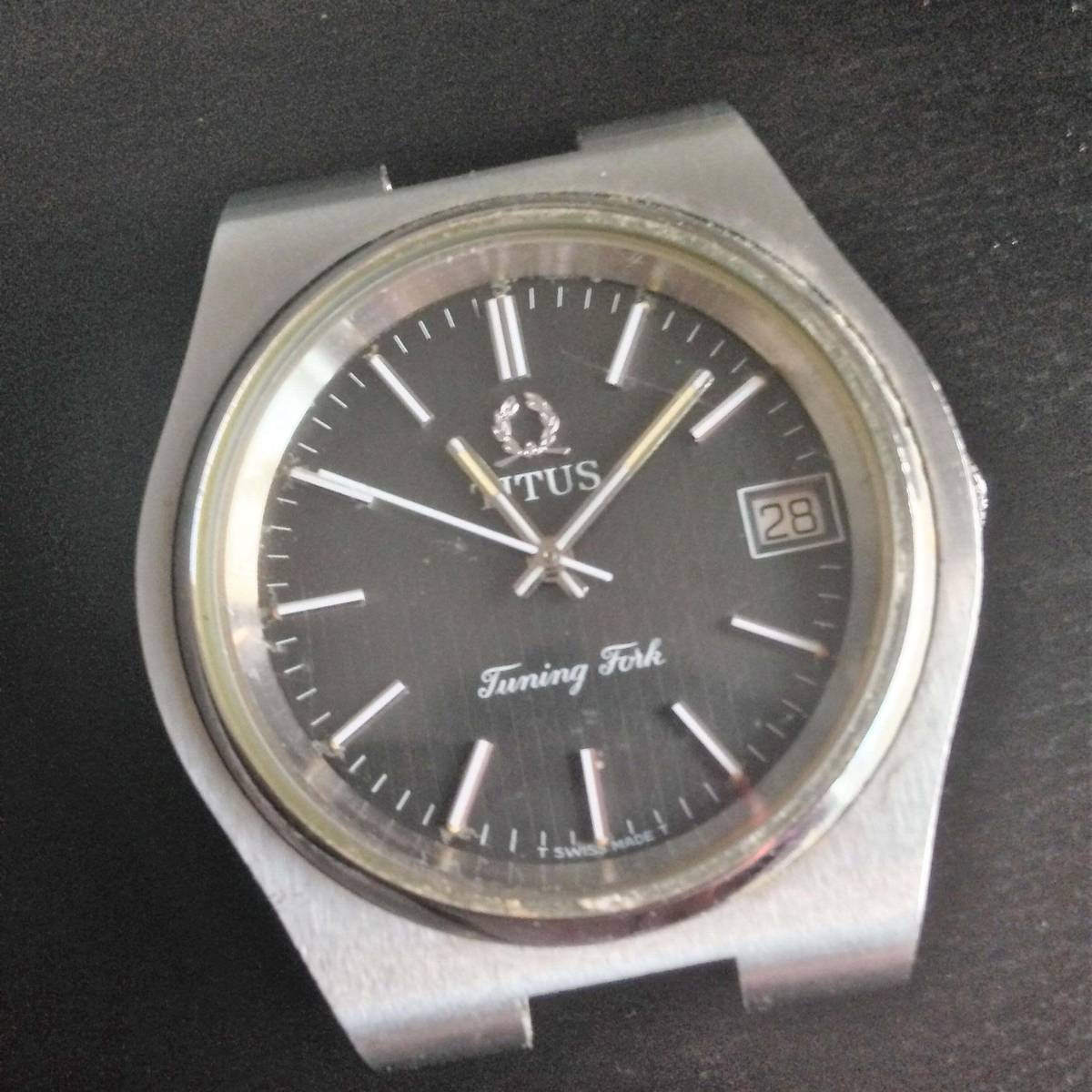

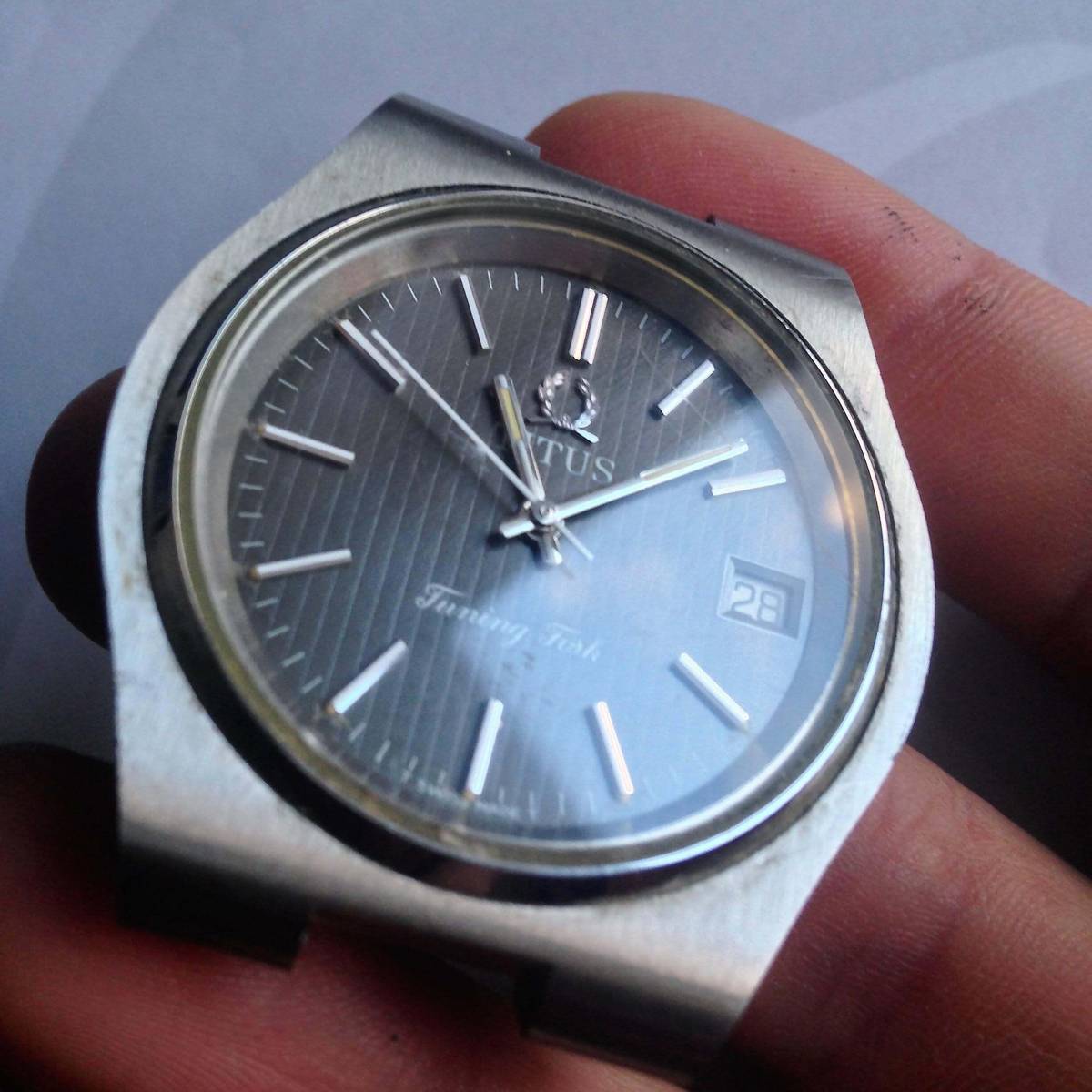

Dial
- Color
- Black
- Dial Markers
- Dagger Indeces
- Finishing Details
- Textured Dial
- Luminiscent Indexes
- Hands and Markers
- Calendar
- Date display at 3 o'clock position

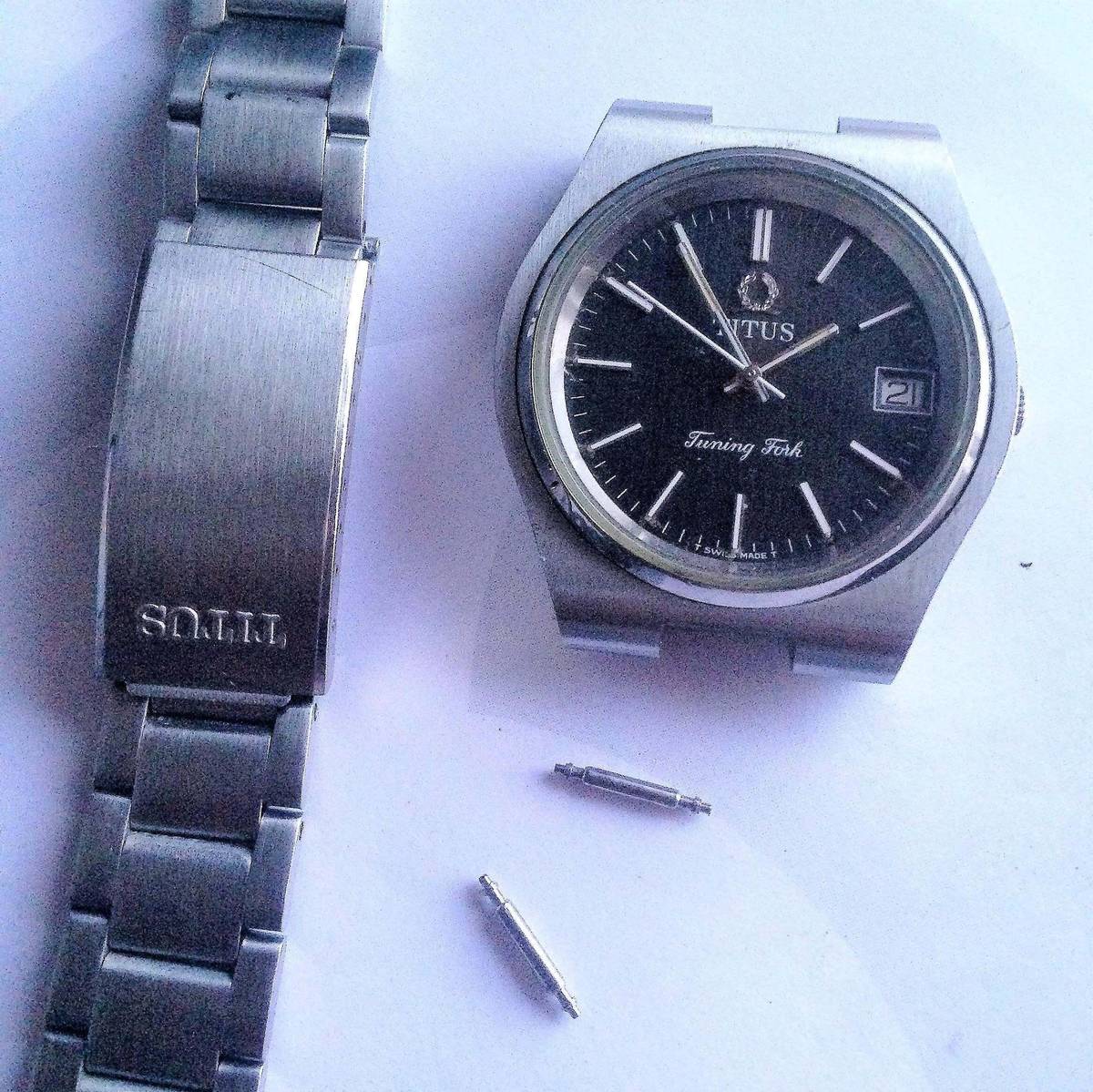

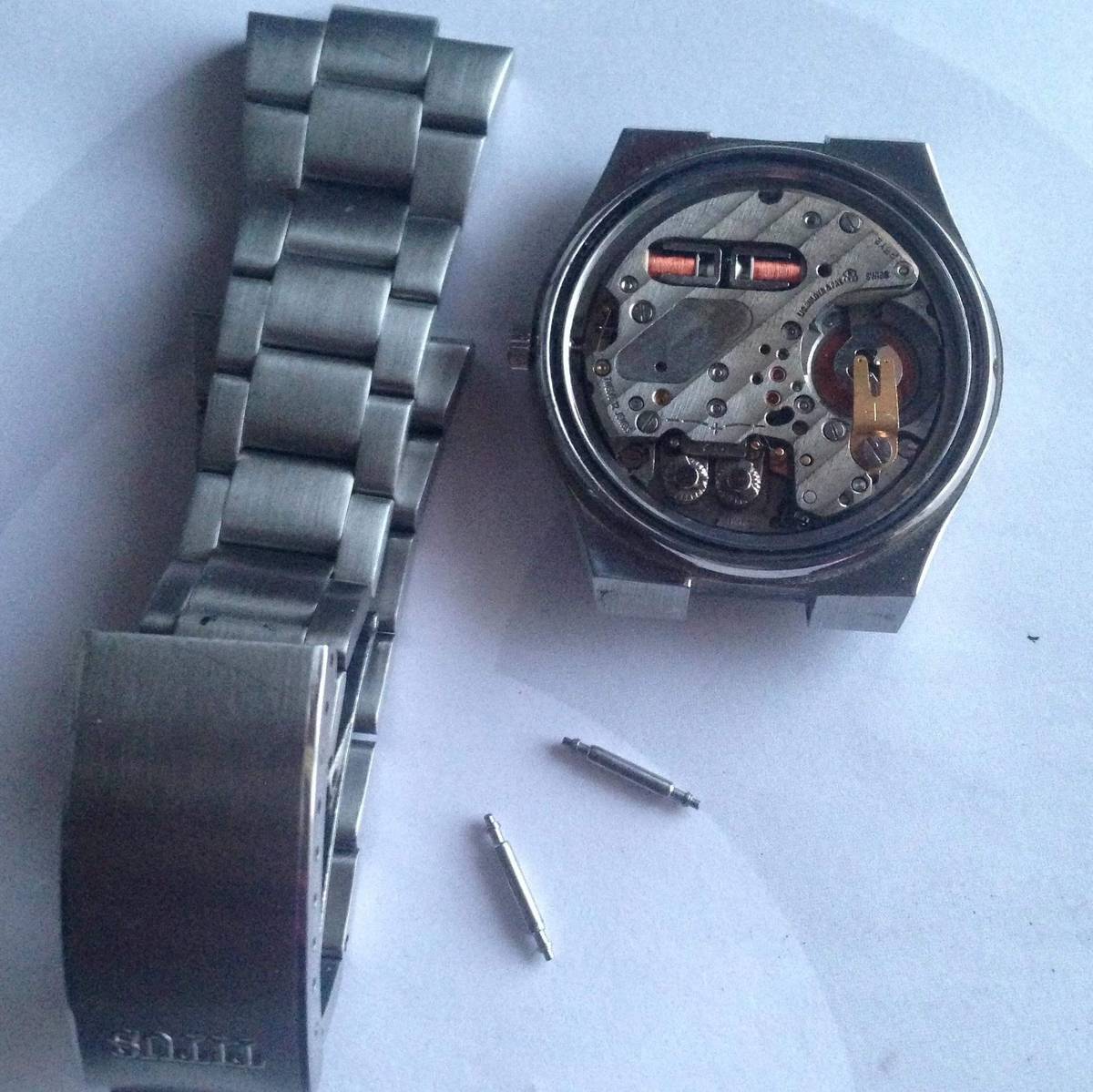

Bracelet
- Material
- Integrated Stainless Steel Links Bracelet
- Buckle Type
- Folding Clasp
- Width
- 22 mm
- Color
- Stainless Steel Grey

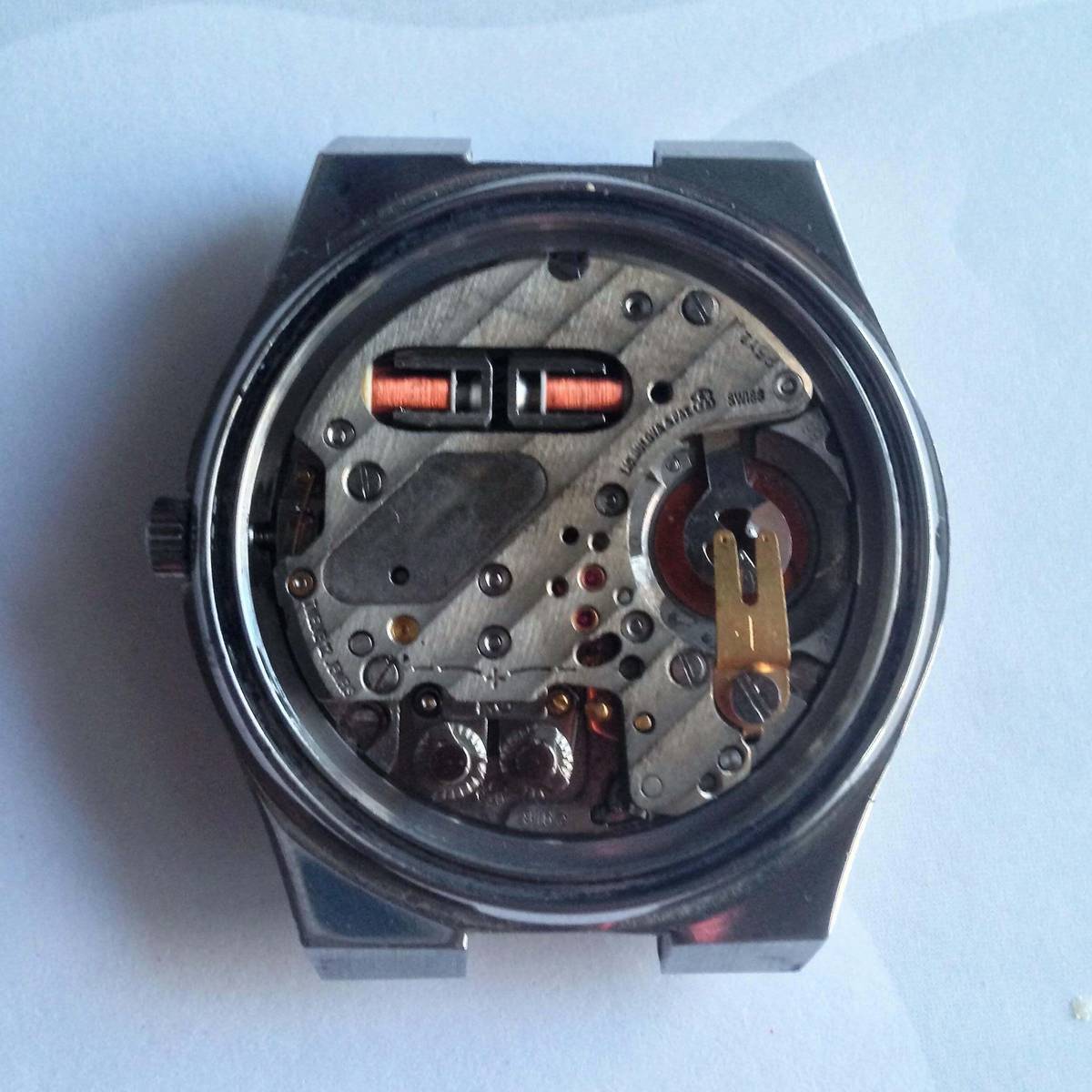

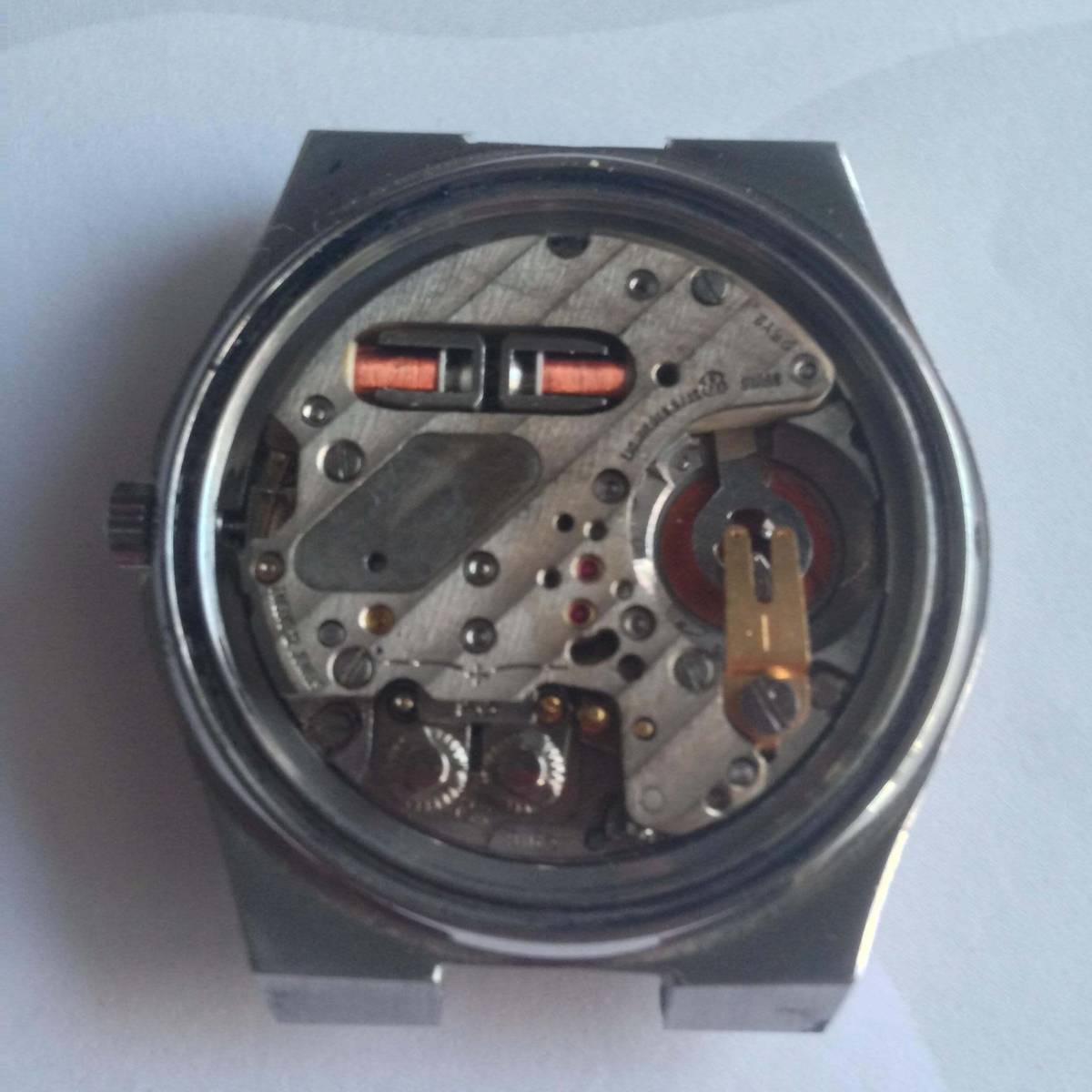

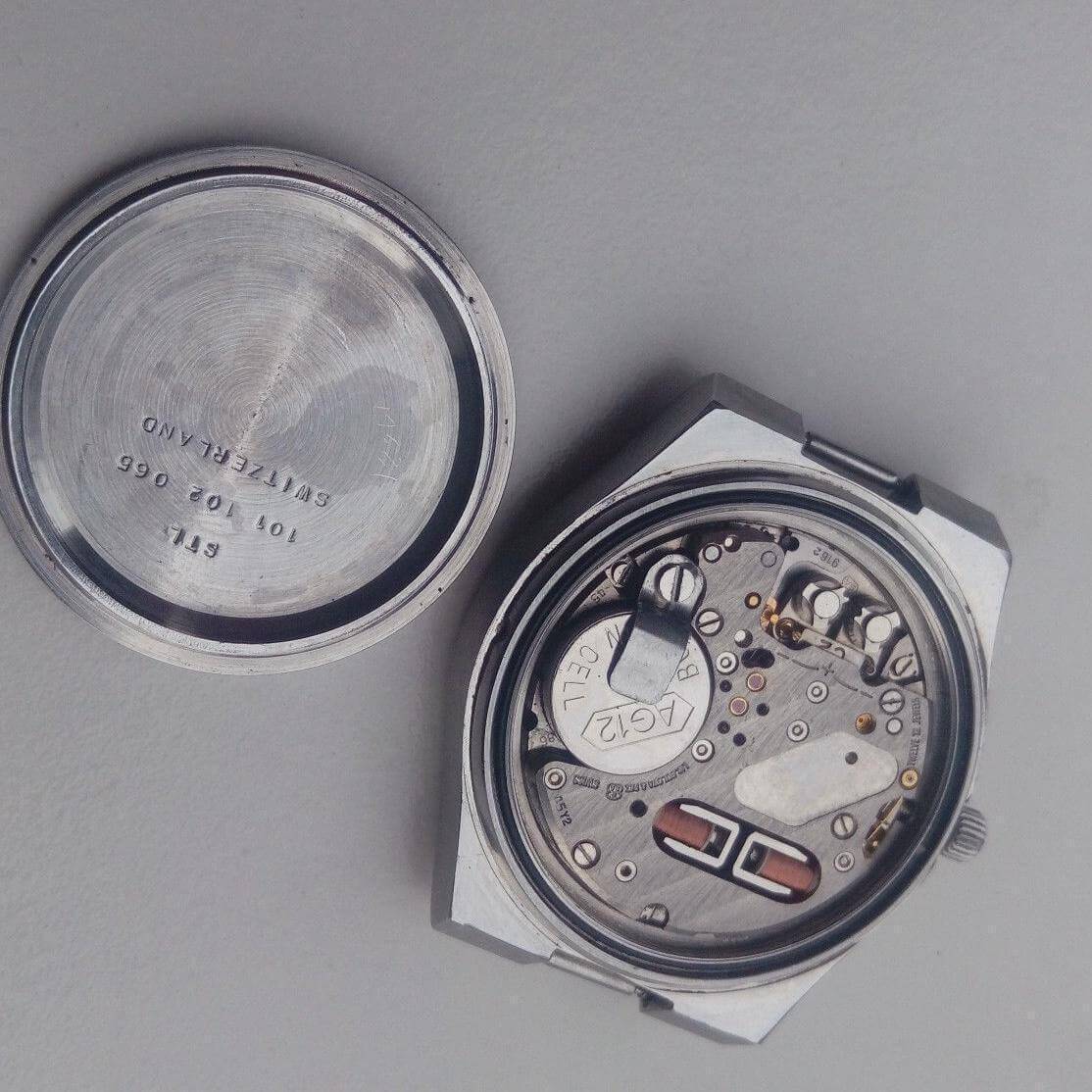

Movement · ETA-ESA 9162
- Manufacturer
- ETA-ESA
- Model
- 9162 (day Version) (Omega F300Hz)
- Type
- Tuning Fork
- Jewels
- 12 (Twelve) Jewels
- Frequency
- 300 Hz
- Functions
- Date, Hours, Minutes, Seconds
- Battery
- 343 (original mercury) / 344 (actual replacement)
Omega and ESA Tuning Fork movements Like many other watch manufacturers in the 1970s, Omega employed tuning fork movements in many of their watches. The ESA 9162 / ESA 9184 movements used by Omega were also designed by Max Hetzel, who had previously worked for Bulova and created the Accutron 214. There is also a chronograph version of these tuning fork movements, known as the ESA 9210 and was used in the Omega Speedsonic range of watches. The Omega watches employing these tuning fork movements were usually referred to as the 'Omega F300Hz' models reflecting the frequency of the tuning fork. The non-chronograph f300s must have been produced in the tens of thousands and are often seen on a popular auction site today. Omega, like many other watch makers, allocated their own calibre numbers to these ESA movements: - Omega Calibre 1250 = ESA 9162 (date only) - Omega Calibre 1255 = ESA 9210 (chronograph day and date) - Omega Calibre 1260 = ESA 9164 (day and date)
